Line bushings

Discover our high-quality cable bushings that have been specially developed for explosion-protected areas. These bushings not only offer excellent safety, but also top quality and reliability.

Our cable bushings are designed to work reliably even in the most demanding environments such as chemical plants, refineries or oil and gas facilities. They meet the strictest safety standards and are certified for use in potentially explosive atmospheres.

Rely on our line bushings to protect your electrical infrastructure in hazardous areas.

Approvals: ATEX, UKEX, IECEx, CCC, CSA, CSA-US, FM, UL

Line Bushings

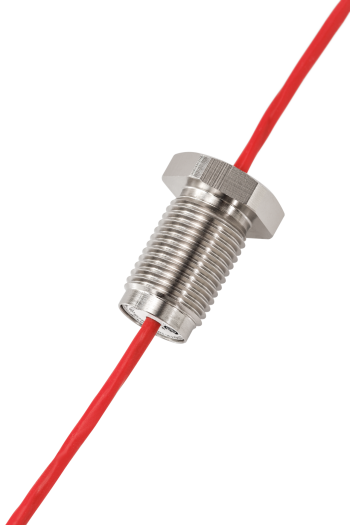

Screwable line bushings

Discover our high-quality screwable line bushings that offer a safe and reliable solution for your applications. They are easy to install and offer a robust design for long-term use.
  • Standard glands from M10 to M42 (up to M72 on request)
  • Wire cross-sections from 0.08 up to 185mm²
  • Up to 99 wires
  • -55°C...115°C standard; -60°C...150°C for high temperature version
  • Nickel-plated brass sleeves; stainless steel on request

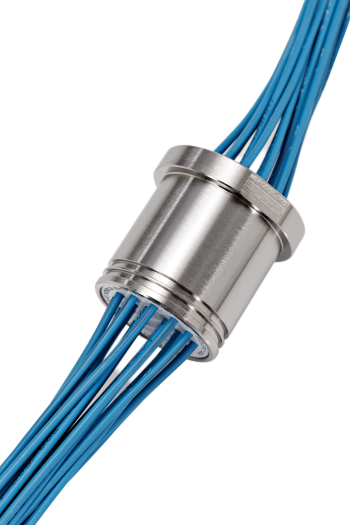

Pluggable line bushings

Thanks to their design, pluggable cable bushings enable time-saving installation without screwing. They are easy to install and offer a robust construction for long-term use.
  • Standard diameters from 10mm to 40mm (up to 80mm on request)
  • Wire cross-sections from 0.08 up to 185mm²
  • up to 99 wires
  • -55°C...115°C standard; -60°C...150°C for high temperature version
  • Nickel-plated brass sleeves; stainless steel on request

'Two-path' line bushings

Thanks to their pluggable design paired with a threaded adapter, two-path cable bushings allow an easy installation. They offer a robust construction for long-term use.
  • Standard diameters from 10mm to 40mm (up to 80mm on request)
  • Wire cross-sections from 0.08 up to 185mm²
  • up to 99 wires
  • -55°C...115°C standard; -60°C...150°C for high temperature version
  • Nickel-plated brass sleeves; stainless steel on request

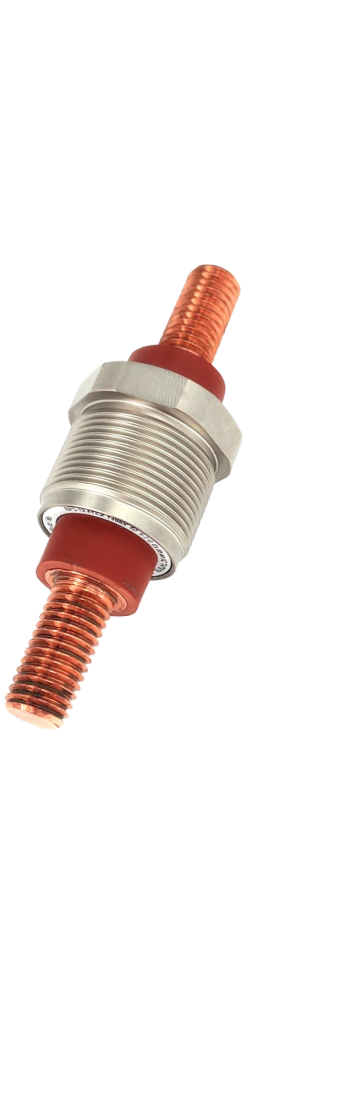

Bolt bushings

Ideal for applications with high currents, our bolt bushings impress with their robust design and simple installation. They are moulded with high-temperature, creepage-resistant resin, which provides excellent insulation to the housing wall and ensures maximum durability.

  • Bolt diameter: Ø 5mm to Ø25mm (other sizes on request)
  • Voltage: up to 6600V (depending on version)
  • Current: 10A to 630A
  • Maximum configuration: 1 bolt (>1 on request)
  • Temperature range: -55°C ≤ Ta ≤ +115°C (depending on version)
  • Nickel-plated brass threaded sleeve, M10 to M42
  • Bolt material: CuZn and E-Cu

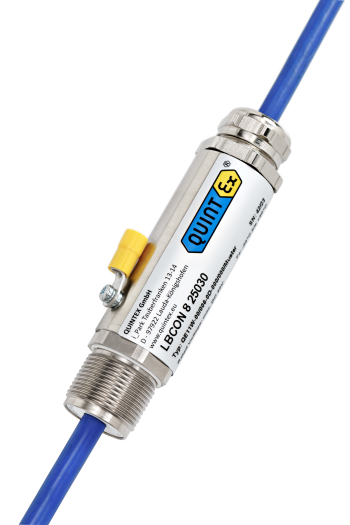

LBCON Ex d with terminal block in Ex e

Line bushings are used for the electrical connection of devices in potentially explosive enclosures. This can be between a pressure-proof enclosure and an enclosure with a different type of protection.
The LBCON is a special solution. Here, the line bushing and connection enclosure have been combined. The main advantage of this type of connection is that contact can be made without opening the pressure-proof enclosure.
The LBCON can be opened by unscrewing the connection housing. Contact is made via a terminal block with 3 or 5 poles and 8 poles for Ethernet.

  • Voltage: max. 400V

  • Current: max. 20A

  • Strand cross-section: max. 2.5mm²

  • Temperature range: -55°C…+115°C (depending on version)

  • Maximum configuration: 5 strands / 8 Ethernet strands

  • Thread of the sleeve: M20 (3 poles); M25 (5 poles)

  • Sleeve material: Nickel-plated brass (other materials on request)

  • Standard strand material: RADOX 125 (other strands / cables on request)


General information

Function

Line bushings play an important role in the electrical connection of devices in areas with a risk of explosion. They ensure that a safe connection is established between an enclosure with a pressure-proof encapsulated housing and an enclosure with a different type of protection (e.g. Ex e) in accordance with the DIN EN 60079-0 standard or another pressure-proof enclosure. This ensures that the cables are protected against direct contact. Depending on requirements, they can be used for various purposes, such as intrinsically safe circuits, measuring and control circuits or energy circuits. If the cable entries are without cables (i.e. only encapsulated), they can also be used as closure elements for enclosures with the " pressure-proof enclosure d" type of protection.

This makes it possible to reseal existing drill holes or threads or to provide them for future expansions by sealing them for the time being and fitting them with cable glands later if required. Our cable entries can be used internationally and have approvals such as ATEX, UKEX, IECEx, CCC, CSA, CSA-US, FM, UL. We have an 'X-certificate' for the ATEX/IECEx area, which makes it possible to integrate these cable glands into new products or equip existing products with other line bushings without additional testing.

Design / cables and wires

Our line bushings are available as screwable, pluggable and 2-path versions. Screw connections from M10 to M42 are provided as standard, up to M72 on request. Deviations from this must be agreed with the approval authorities.

For pluggable line bushings, the equivalent sizes of a screwable bushing apply.

An essential quality feature of a line bushing is the adhesion of the cast resin to the cables. In addition to their high temperature resistance, RADOX® cables have also proven to have very strong adhesion.

The cast resin we use is an approved, future-proof cast resin that is not subject to the constant risk of discontinuation by the supplier as a special production.

We also offer a high-temperature version (-60°C...150°C).

Our service

Experience taught us to solve problems. Do not make any compromises, the bushings are safety components. The readability of the marking is a very important requirement for use in accordance with standards.

Compare us, you will immediately recognize your advantages. Quintex works here with the latest technology, to your advantage. We are able to produce even the smallest series economically.

Do you have a special problem or need a constantly changing implementation for your controls? That's what we are here for, use our experience for your application.

Test us, visit us. We will find a solution together at one table during your visit

Customized solutions

If you cannot find your specific requirements in this description, please contact us. If you have technical documents, please send them to us and we will check the technical feasibility.

We do not rule out new options, but discuss these options with the approval authority and report on the feasibility with regard to explosion protection.

We are always guided by your problem and look for possibilities within the scope of the standards. This also requires experienced staff, an advantage that Quintex can provide you with. We will continue to work on new but safe, economical but reliable solutions in the future.

Innovations

You are planning something new, expanding your product portfolio or working on an innovative solution for your industry...

Let us look for solutions together, professionally and discreetly. We help you in our niche, you concentrate on your field, we concentrate on ours.

Development, approval and production from a single source guarantee fast response times, innovative solutions and efficient implementation in production or series production.

To your advantage: quickly on the market with the necessary head start... we will help you!
